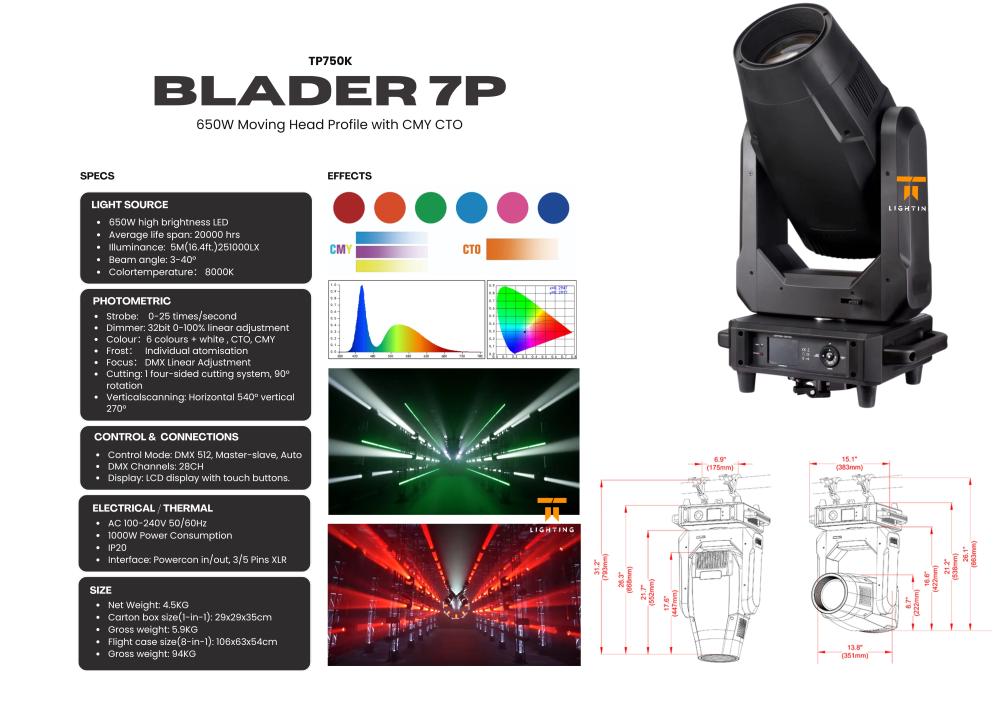

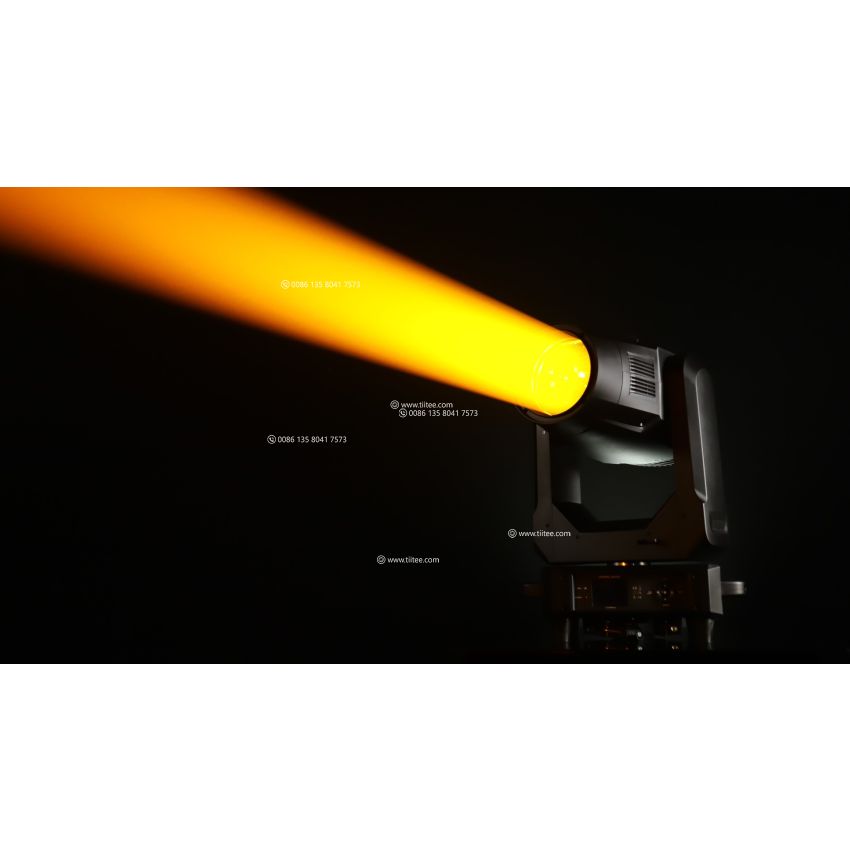

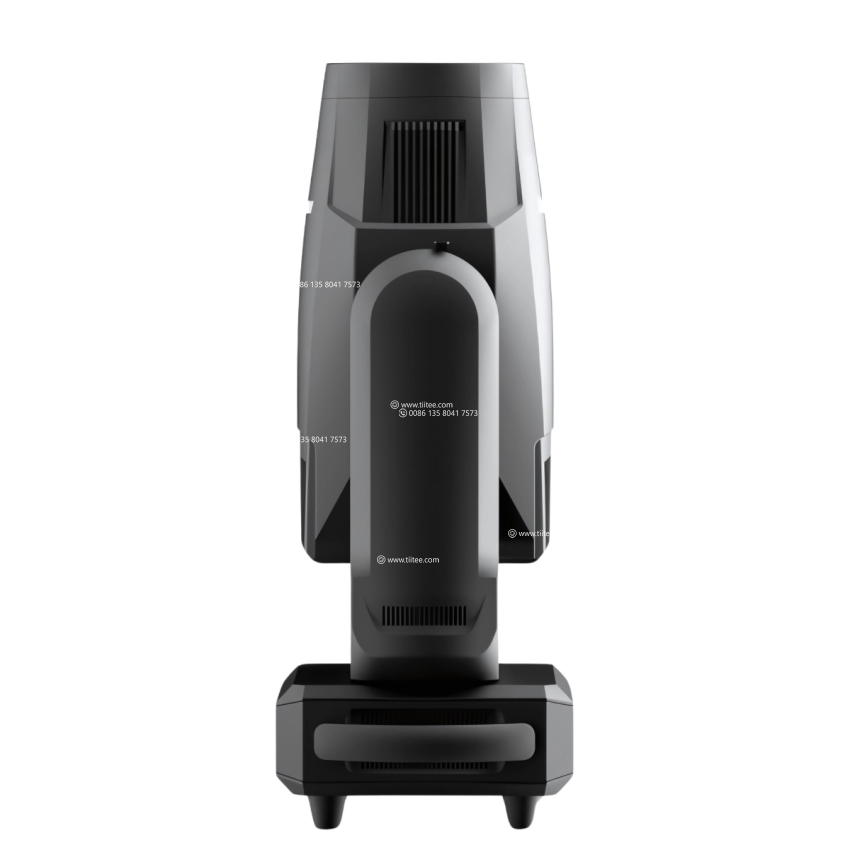

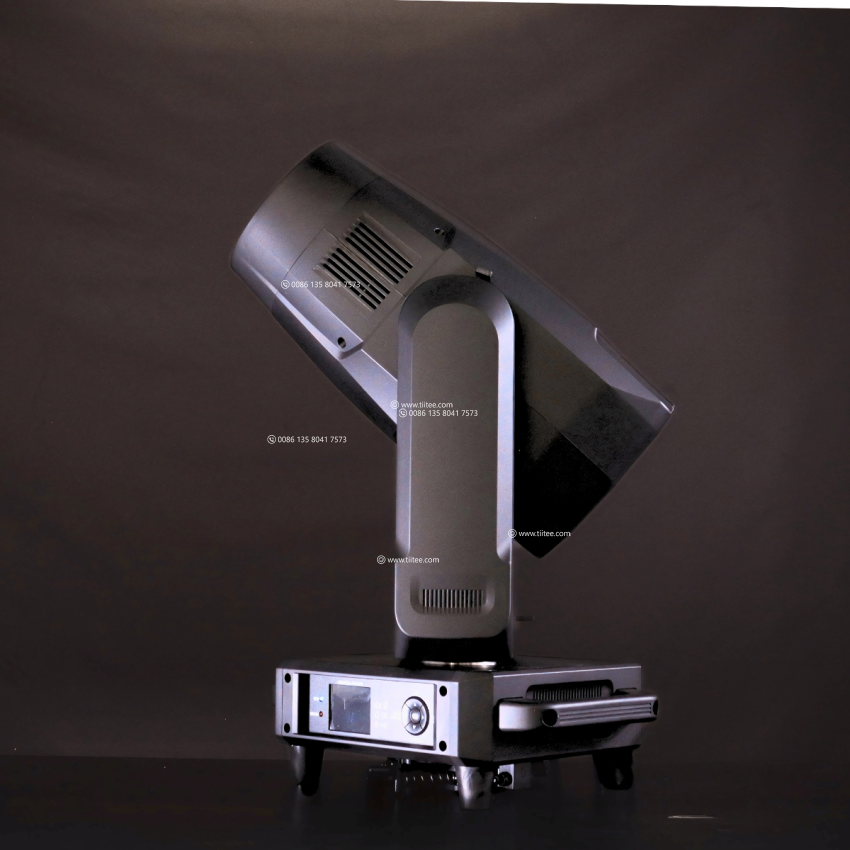

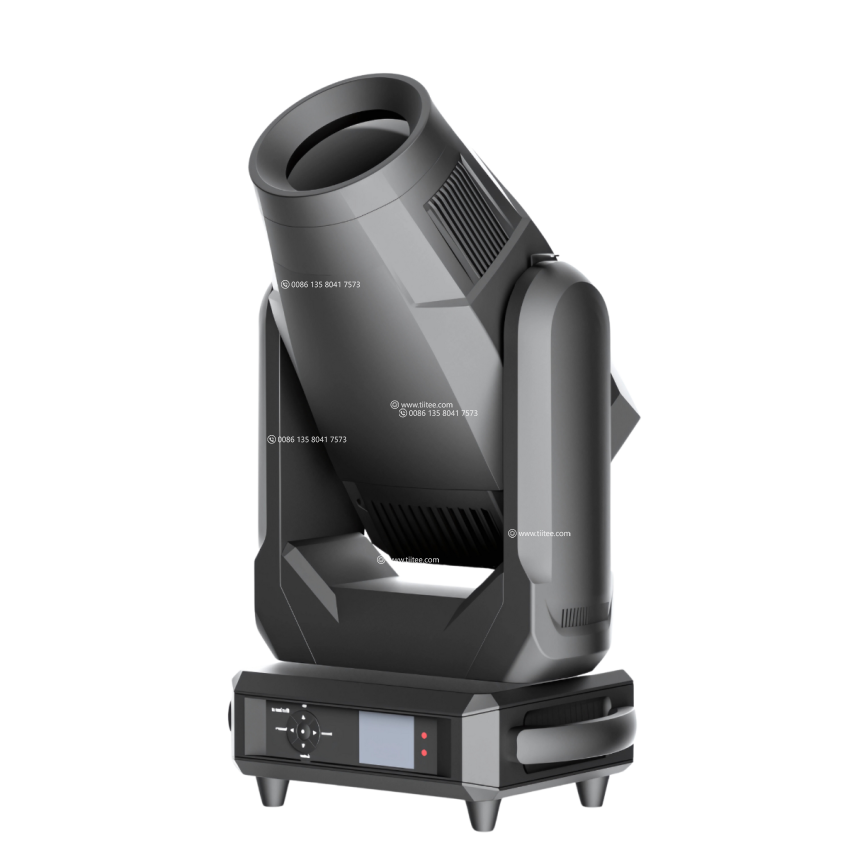

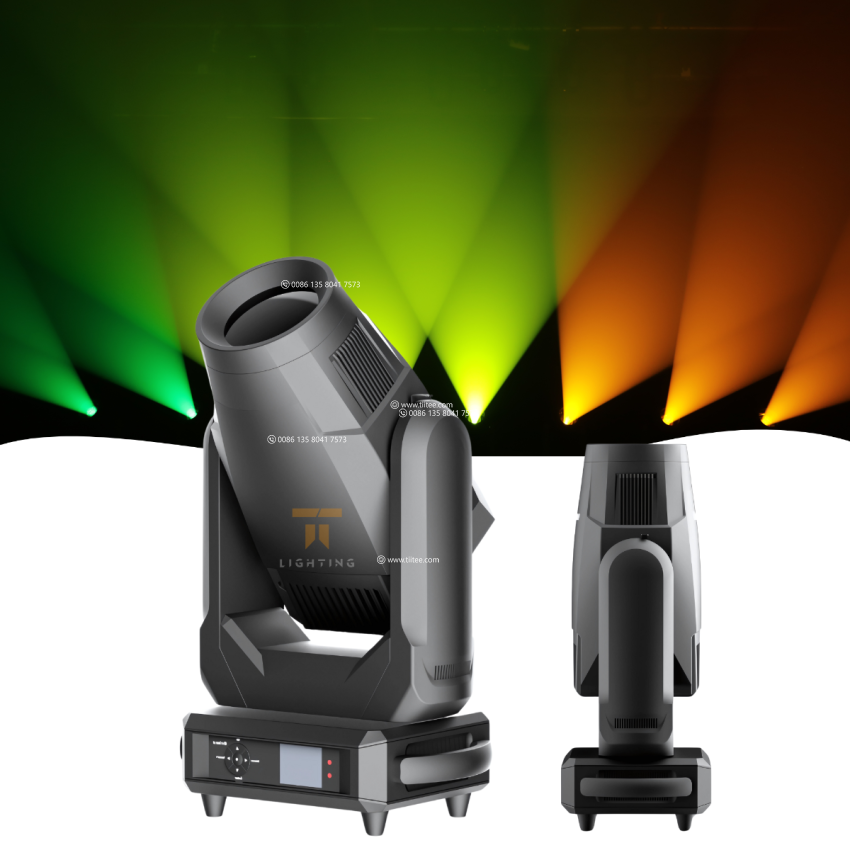

TIITEE Lighting Blader 7P Moving Head Profile With CMY CTO

TECHNICAL PARAMETERS

POWER SUPPLY

Input voltage: 100-240V AC, 50/Hz

Power consumption: 1000W@220V

LIGHT SOURCE

Light source : Imported LED Module engine 650W

Lifespan: 20000 hours

 Lumen illuminance: 5 meters 168000LX

LED Source Color temperature: 7000K

High Brightness Version:

LED Source CRI: Ra>70, CRI filter Ra>80

High CRI Version: LED Source CRI: Ra>80, CRI filter Ra>90, brightness reduce 20%

OPTICS

Dimming: 0-100% linear adjustment

Frost: Independent atomization

Focus: DMX linear adjustment

Variable strobe

CONTROL AND PROGRAMMING

Channel mode: 39CH

AC power in/thru: PowerCon I N / O U T

DMX data in/out: 3-pin locking XLR

Programming: DMX512,RDM

Housing: High temperature resistant flame retardant nylon plastics

EFFECT SECTION

 Colour: 1 Color Plate (7 colors + White light), CTO

CMY color Mixing

CTO linear adjust

Fixed gobos: 1 Fixed Gobo Wheel

Rotating gobos: 6 rotating glass gobos

Prism system: 3 prism

Cutting system: 4 cutting blades achieve fast and smooth cutting, with the direction and angle of each blade independently controllable

MOVING BODY

Pan/Tilt: 540°/270 degrees (16bit precision scanning)

Cooling method: Adopt axial fan to enhance cooling

Working environment: -20°C to 40°C

Protection level: IP20

WEIGHT&DIMENSION

Product net weight: 28KG

Product size: 401*290*701mm (L*W*H)
